Corner Guard System

___

Wal Guard Corner Guards are designed to be the solution for scuffed and damaged wall corners and columns. Corner Guards are
replaceable, scratch-resistant and absorb impact - providing an effective shield against damage and costly repairs.

Corner Guards are available in two series:
Light Duty Corner Guard - suitable for installation along corridors within building, e.g. supermarkets, hospitals and public
institutions
Industrial Duty Corner Guard - best suited for installation in car parks and loading bays

Corner Guard is manufactured from specially developed vinyl acrylic materials and has the following qualities:
Able to withstand high impact and abrasion
Weather resistant and fire retardant
Anti-slip surface
Textured for an anti-scratch surface (for Light Duty Corner Guard)
Fittings and anchorages that can withstand corrosion when exposed to normal environmental conditions
Easy to install and maintain
Tested to UL-94 (Underwriter's Laboratory) with a V-0 rating for fire retardation


Smooth Surface (CG 45 System)


A. High impact vinyl acrylic mounting base (CG 45B)
B. Adjustable end cap (CG 45EC)
C. High impact vinyl acrylic snap-on matt finished cover (CG 45 C)



* Available in various colours (see Colour Selection)





CG 45 System










Textured Surface (CGT 50/75 System)

A. High impact mounting base (CGT 50B / CGT 75B)
B. Adjustable end cap (CGT 50EC / CGT 75EC)
C. High impact vinyl acrylic snap-on textured surface cover (CGT 50C / CGT 75C)


* Available in various colours (see Colour Selection)




CGT 50/75 System










Textured Surface (CGT 75-135° System)

A. High impact mounting base (CGT 75B - 135°)
B. Adjustable end cap (CGT 75EC - 135°)
C. High impact vinyl acrylic snap-on textured surface cover (CGT 75C - 135°)


* Available in various colours (see Colour Selection)




CGT 75-135° System









Semi Flexible (CGF 70 System)

A. Co-extruded flexible base (CGF 70)
B. Aluminium mounting strip
C. Adjustable end cap (CGF 70EC)
D. Contrasting colour rubberised cover strip
E. Co-extruded strip of contrasting colour


* Available in various colours (see Colour Selection)




CGF 70 System

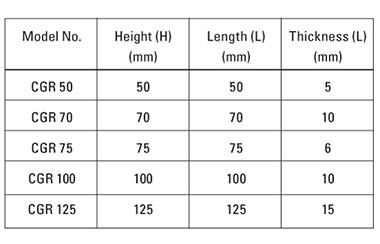

Rubber Corner Guard (CGR System)

A. Co-extruded flexible base (CGF 70)
B. Aluminium mounting strip
C. Adjustable end cap (CGF 70EC)
D. Contrasting colour rubberised cover strip
E. Co-extruded strip of contrasting colour


* Available in various colours (see Colour Selection)




CGR System
